- SPECIFICATIONS
- Nominal Input Level
- -20 dBu
- Input Impedance
- 1 M ohms
- Nominal Output Level
- -20 dBu
- Output Impedance
- 1 k ohms
- Recommended Load Impedance
- 10 k ohms or greater
- Bypass
- Buffered bypass
- Controls
- Pedal switch
Mode switch
DIST knob
LEVEL knob
TONE knob - Indicator
- CHECK indicator (Serves also as battery check indicator)
- Connectors
- INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack - Power Supply
- Alkaline battery (9 V, 6LR61 or 6LF22) or Carbon-zinc battery (9 V, 6F22)
AC adaptor (PSA series: sold separately) - Current Draw
- 15 mA
- Expected battery life under continuous use
- Alkaline: Approx. 50 hours
Carbon: Approx. 25 hours
*These figures will vary depending on the actual conditions of use. - Accessories
- Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
Alkaline battery (9 V, 6LR61 or 6LF22) - Options (sold separately)
- AC adaptor: PSA series
- SIZE AND WEIGHT
- Width
- 73 mm
2-7/8 inches - Depth
- 129 mm
5-1/8 inches - Height
- 59 mm
2-3/8 inches - Weight (including battery)
- 430 g
1 lb - * 0 dBu = 0.775 Vrms
- *The specifications are subject to change without notice.
leprechaunfx

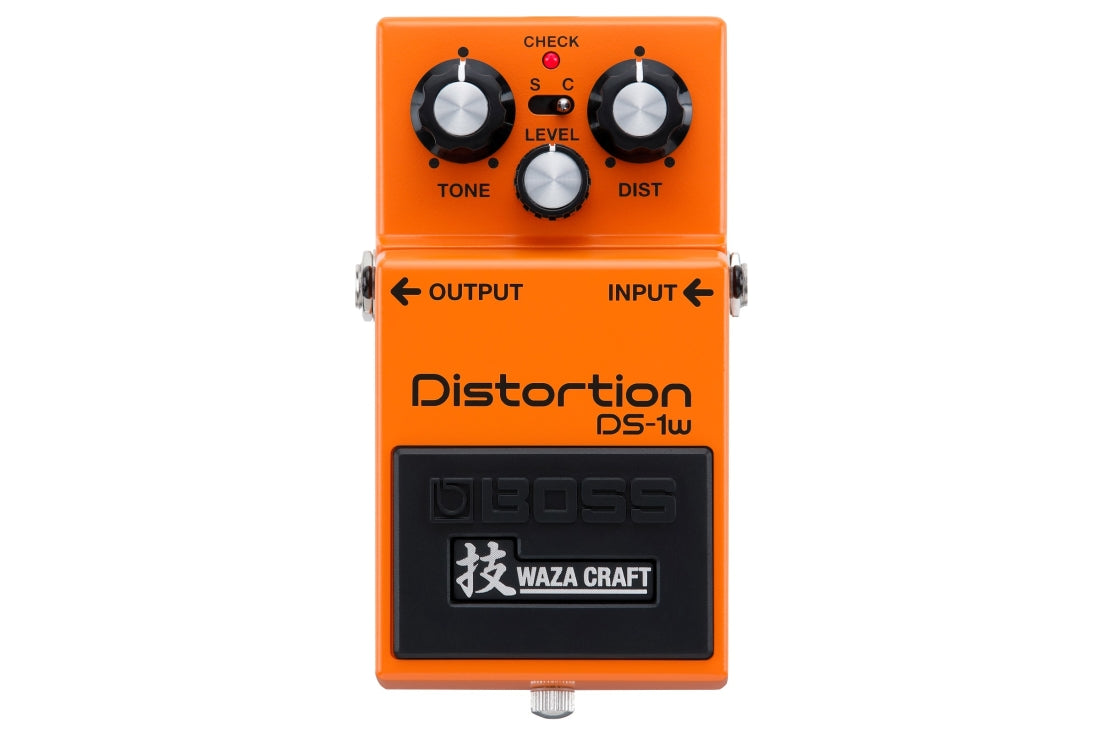

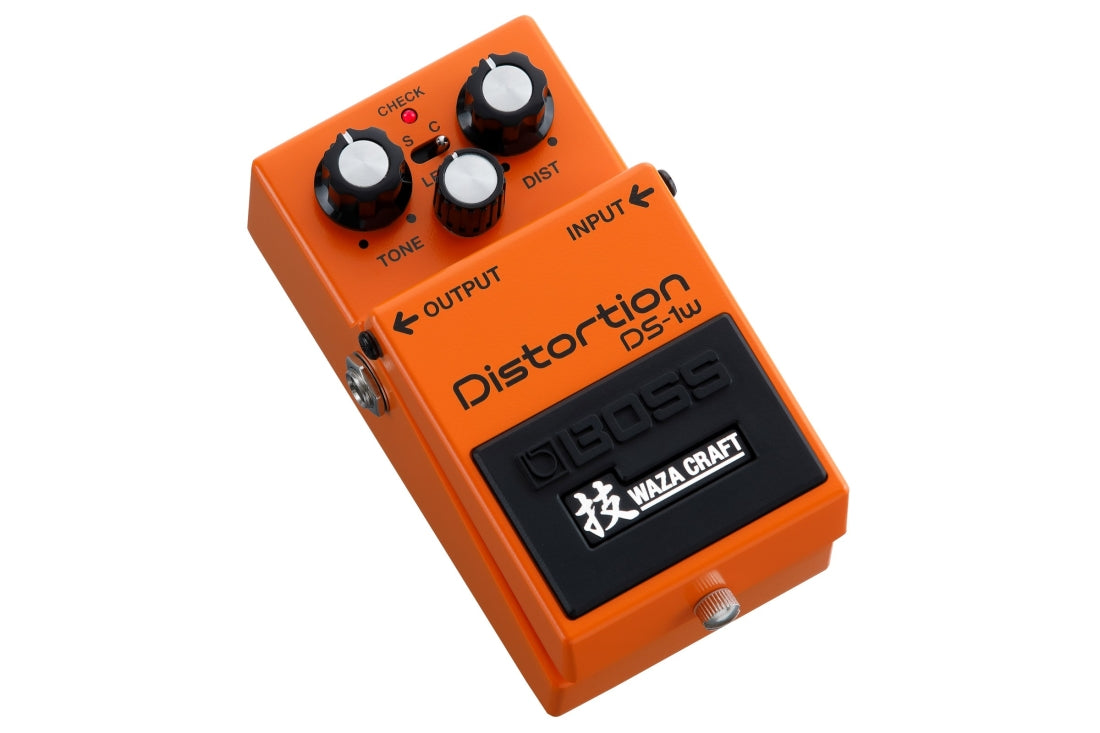

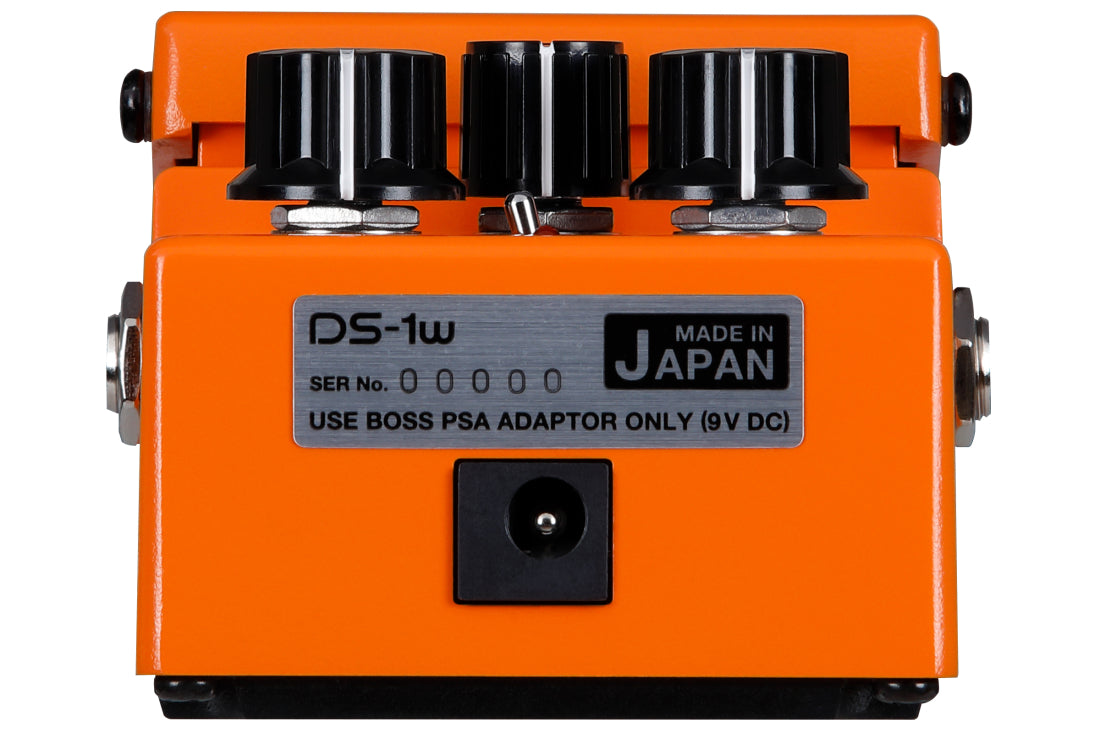

BOSS (DS-1W) Distortion Waza Craft
BOSS (DS-1W) Distortion Waza Craft
Regular price
$219.99 CAD
Regular price
Sale price
$219.99 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
The Classic BOSS Distortion, Enhanced with Waza Craftsmanship
Introduced in 1978 among the earliest models in the BOSS compact series, the orange DS-1 redefined the sound of distortion and remains as influential today as ever. Its hard-edged attack and smooth sustain have made it the best-selling compact effect to date, and its distinctive tone is behind the signature sounds of a long list of rock and alternative icons. With the DS-1W, this legendary stomp joins other BOSS classics in the Waza Craft series, fusing the look and character of the original with a newly revised discrete all-analog circuit for expanded range and versatility.
