- Nominal Input Level
- -20 dBu
- Input Impedance
- 1 M ohm
- Nominal Output Level
- -20 dBu
- Output Impedance
- 1 k ohm
- Recommended Load Impedance
- 10 k ohms or greater
- Bypass
- Buffered bypass
- Controls
- MODE selector switch
DECAY knob
THRESHOLD knob
Pedal switch - Indicator
- CHECK/MUTE indicator (Used for indication of check battery)
REDUCTION indicator - Connectors
- INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
SEND jack: 1/4-inch phone type
RETURN jack: 1/4-inch phone type
DC IN jack
9V DC OUT jack - Power Supply
- Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately) - Current Draw
- 25 mA
- Expected battery life under continuous use
- Carbon: Approx. 11 hours
Alkaline: Approx. 24.5 hours
*These figures will vary depending on the actual conditions of use. - Accessories
- Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Carbon-zinc battery (9 V, 6F22) - Options (sold separately)
- AC adaptor: PSA series
Parallel DC Cord: PCS-20A - SIZE AND WEIGHT
- Width
- 73 mm
2-7/8 inches - Depth
- 129 mm
5-1/8 inches - Height
- 59 mm
2-3/8 inches - Weight (including battery)
- 415 g
15 oz - * 0 dBu = 0.775 Vrms
- * The specifications are subject to change without notice.
leprechaunfx

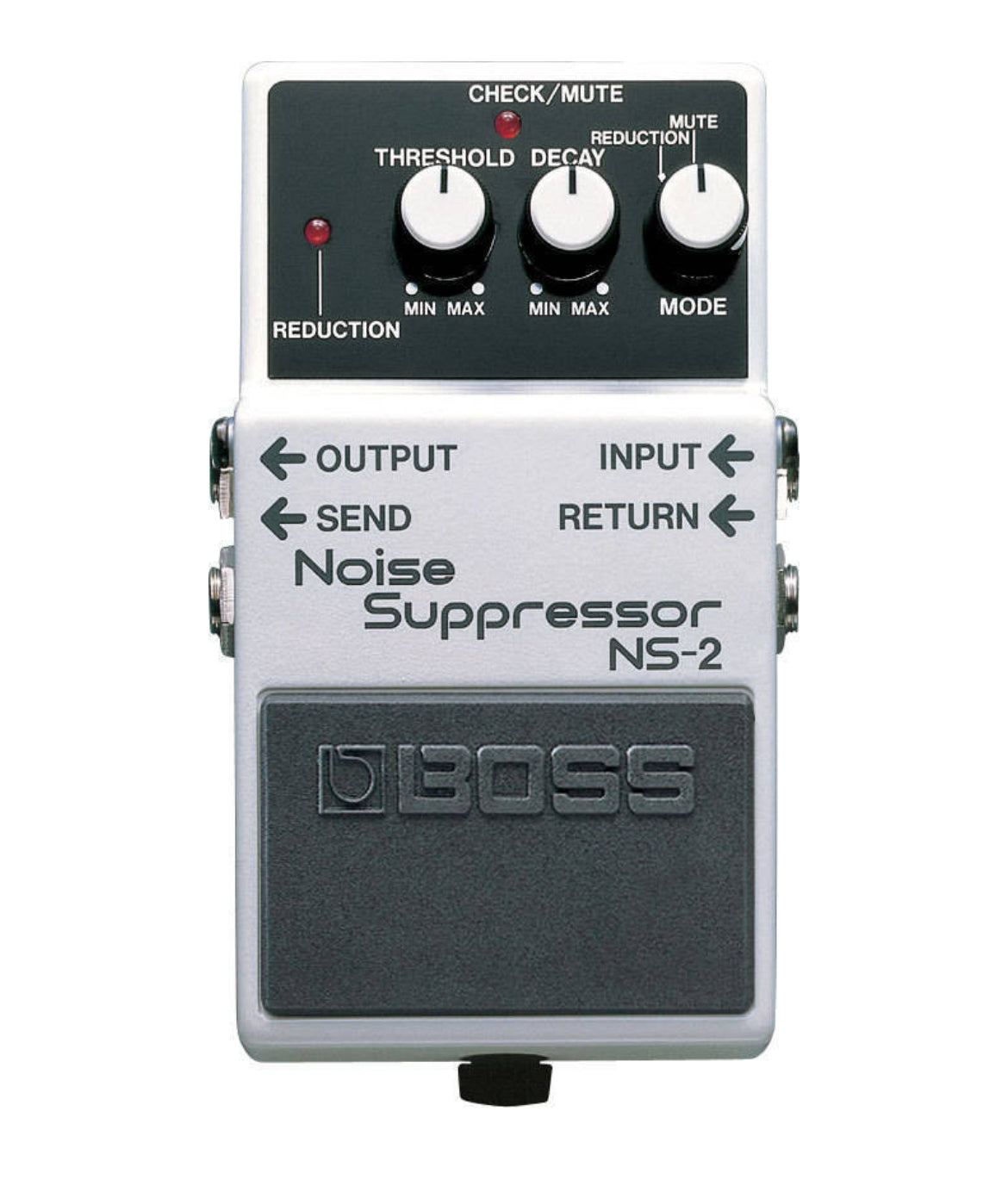

BOSS (NS-2) Noise Suppressor
BOSS (NS-2) Noise Suppressor
Regular price
$159.99 CAD
Regular price
Sale price
$159.99 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
A “MUST-HAVE” PEDAL!
The NS-2 Noise Suppressor eliminates unwanted noise and hum without altering an instrument's natural tone. It's the perfect pedal to quiet down any pedalboard or effects setup.
SPECIFICATIONS
