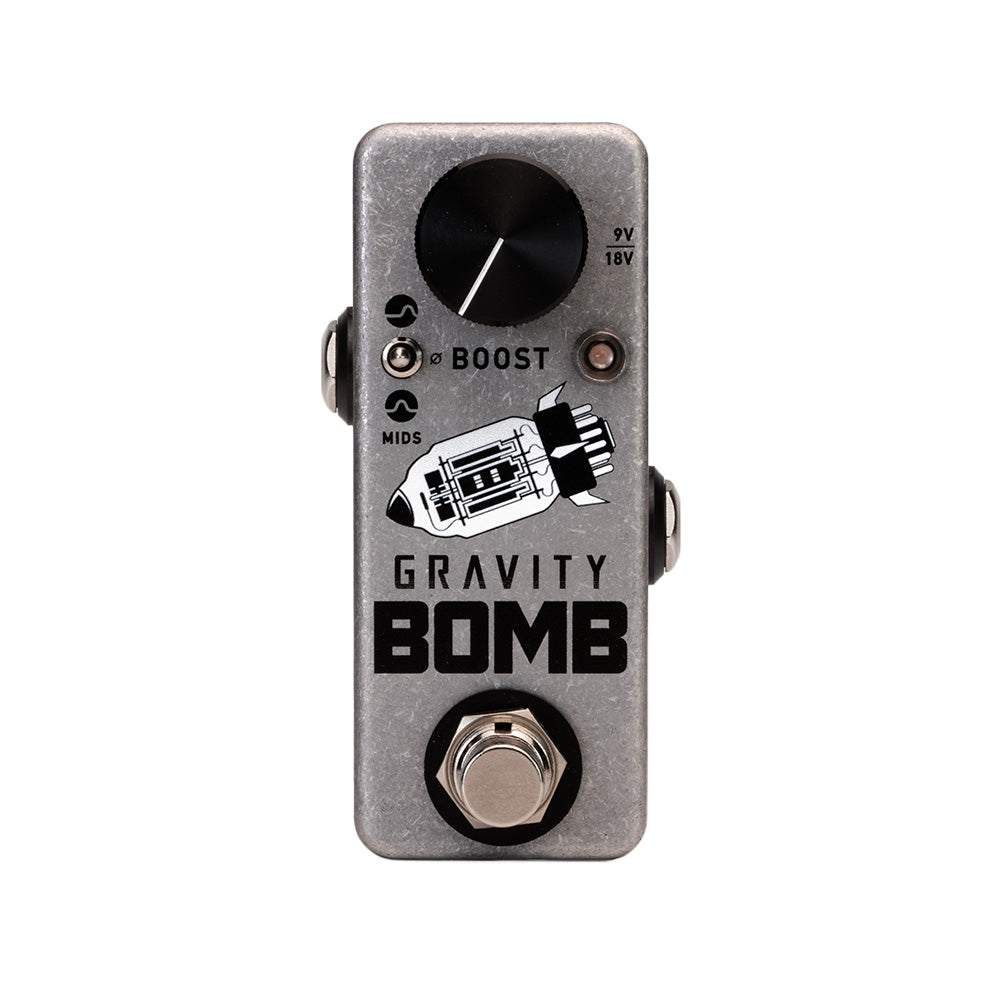

Coppersound Pedals Gravity Bomb V2 Clean Boost & Mids Enhancer

GRAVITY BOMB V2 CLEAN BOOST & MIDS ENHANCER by Coppersound Pedals

This one goes to Eleven!

The Gravity Bomb V2 clean boost pedal picks up where the original left off; delivering up to 20dB of clean boost over the sweep of it’s volume pot, similarly powered by an audiophile-grade Burr Brown Op Amp. With the addition of our Mid-enhance toggle, V2 allows the player to further dial in their boosted tone, by selecting from three different mid-range types. The center position –  just like Gravity Bomb V1 – maintains a flat and neutral EQ curve. In the down position, V2 boosts Mids at 750Hz, while the up position boosts at 1kHz, making this boost pedal a great tool to pair with other pedals to give them a fresh tone and feel. Gravity Bomb V2 features mechanical true-bypass switching. In the off position, the input signal is sent directly to the output. Try it at 18v for increased headroom!

While we were in the designing process for V2, we wanted to maintain the miniature form factor and overall sound. We came up with the idea to incorporate an active mid-range control that would allow the user to access 2 mid-range frequencies in the up or down position on the toggle switch. The completely flat EQ from the original is accessed with the toggle switch in the middle position, making for a perfect choice for a clean boost pedal. We designed a custom enclosure  for our newly redesigned Mini Series. Similar to the familiar 1590A, our enclosure is a little bit taller to make it easier to access while among larger/taller pedals.

• Your new secret weapon!

  • 20dB of clean volume boost
  • Audiophile-grade Burr Brown Op-amp
  • Toggle switch for selecting three different mid-range types
  • 9-18v operation
  • Miniature form factor
  • Handmade in the U.S.A.

• Specs

  • 9v – 18v:  2.1mm x 5.5mm Center Negative | 10mA @ 9v  | 20mA @ 18v
  • In/Out: ¼” Instrument Cable
  • 3.65″ x 1.8″ x 2.19″ (including jacks and hardware)
  • Mechanical True Bypass
