leprechaun.fx-855

Dr Scientist BitQuest

Dr Scientist BitQuest

Regular price $310.00 CAD
Regular price Sale price $310.00 CAD
Sale Sold out
Shipping calculated at checkout.

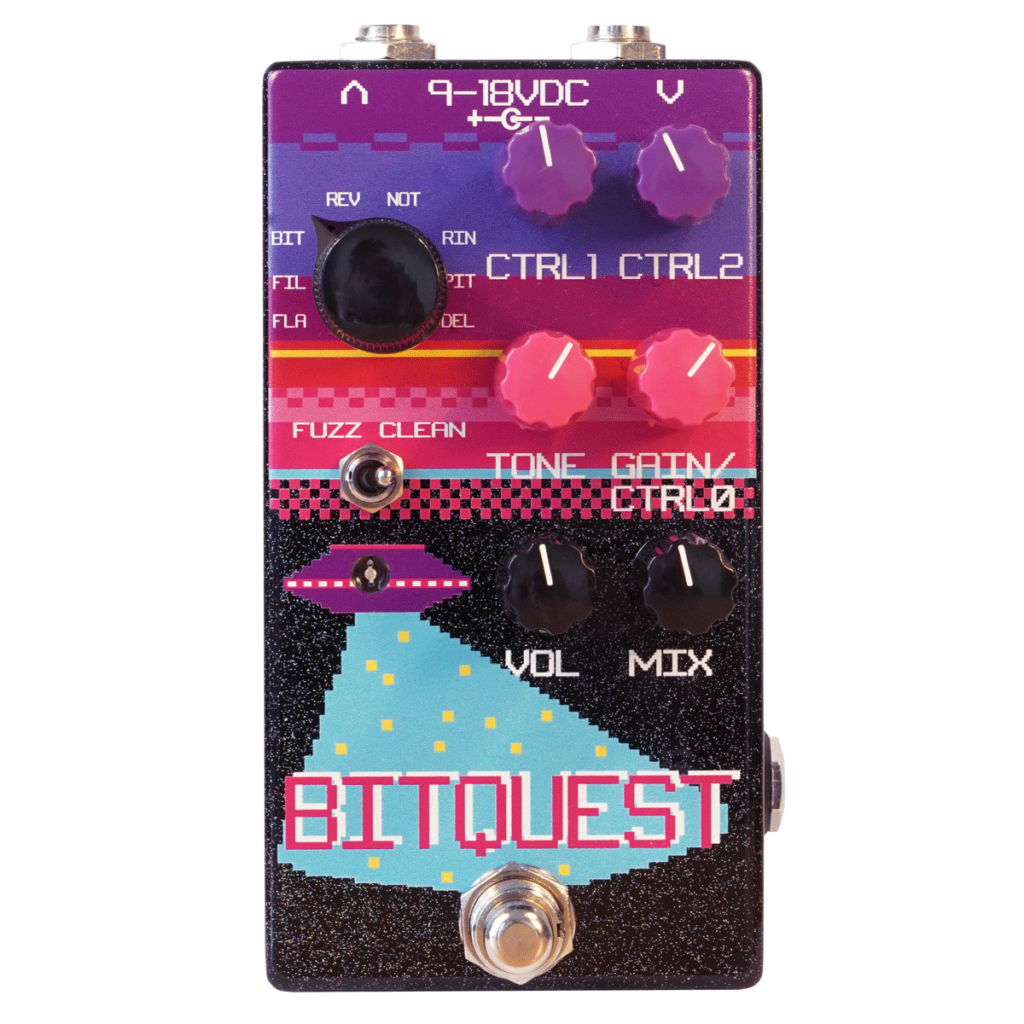

BitQuest by Dr. Scientist Sounds

If you’re on a quest that takes you far from home, you can’t be weighed down. You never know when you’ll need to duck under a laser cannon, or fight a giant eyeball, and you need to have portable and practical tools to face whatever alternate reality lays in store. It’s the same thing with your tone--sometimes it pays to have a compact, digital multi-tool that covers a wide range of tone needs. Enter the BitQuest: Complete with eight digital effects that work with or without a built in digital fuzz, the BitQuest offers flanger, HP/LP filter, bit crusher, infinite reverb, notch filter, ring mod, pitch shift and glitch delay, all in one pedal. No matter where the future takes you, BitQuest has got you covered.



BITQUEST TECH SPECS

Operation:Mono input, mono output

Power Requirements:9VDC @ 75mA, 18VDC @ 150mA, 2.1mm center negative plug

Input/Output Impedance:500kΩ/1kΩ

Bypass:True bypass using soft touch switch and relay.

Knobs

Mix:Dry signal only at min, Wet signal only at full

Vol:Wet signal level

Treble:+/-15dB peaking filter centred at 3kHz

CTRL0:In Fuzz Mode this is the gain control, in Clean Mode this controls an effect parameter, depends on patch

CTRL1:Controls an effect parameter, depends on patch

CTRL2:Controls an effect parameter, depends on patch

Toggle Switch:Fuzz Mode adds a versatile digital distortion to the effects, Clean Mode takes away the fuzz and adds an extra control parameter.

Expression Input: Controls CTRL0, TRS input, 50kΩ

Warranty:Limited Lifetime[/vc_column_text][/vc_column][/vc_row]
