VOX V846-HW Wah Pedal

Regular price $280.00 CAD
Regular price Sale price $280.00 CAD

V847-HW Wah Pedal by VOX



Over forty years after the original VOX Wah forever changed the sound of rock music, the V846 has been reborn as the V846-HW Hand-Wired Wah Wah Pedal.


--

[vc_row][vc_column width="1/2"][vc_video link="https://www.youtube.com/embed/PhgyGxSYIeg"][/vc_column][vc_column width="1/2"][vc_column_text]













Over forty years after the original VOX Wah forever changed the sound of rock music, the V846 has been reborn as the V846-HW Hand-Wired Wah Wah Pedal. While its classic tone is undeniable, the V846-HW was not created to simply repeat the history of the past, but to write new chapters in the future. As its name implies, the V846 Hand Wired boasts hand-wired turret board construction. But VOX didn’t stop there. Every component, including the inductors, resistors, capacitors, and the potentiometer has been carefully selected for premium fidelity and tone. In fact, a tone-preserving true bypass has been added to the original design. Outside, the die-cast body features a sandblasted exterior with crepe finish. The V846-HW is a perfect combination of VOX’s world-famous technology, with classical yet modern specifications, surpassing any previous Wah Wah pedal in history by delivering the purest sound.

Hand Wired Artistry

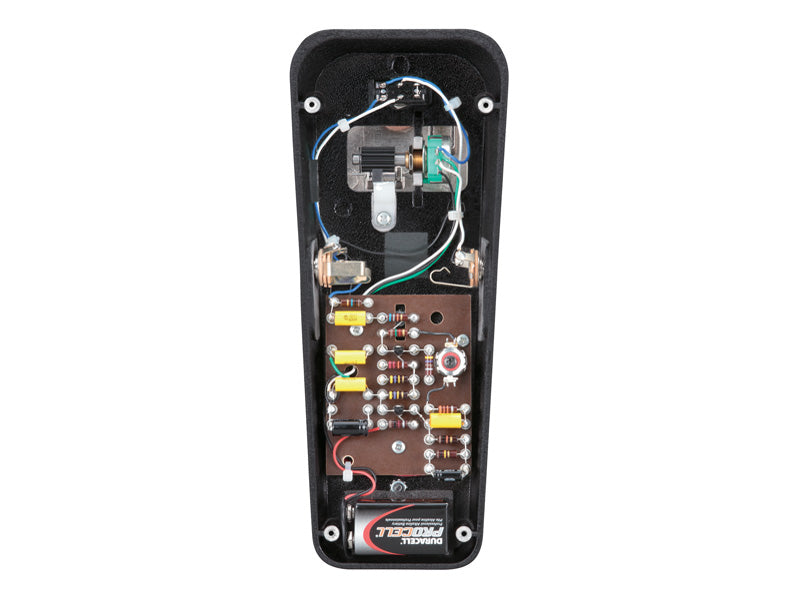

The internal circuitry of the V846-HW uses no printed circuit boards whatsoever; the hand-wired turret board construction requires a high level of craftsmanship, technical skill, and precise manual assembly. Labor intensive, this hand-wiring artistry creates an ideal and efficient signal path. Responding to every nuance of the guitarist's touch, the V846-HW is truly the ultimate Wah Wah pedal.

True Bypass

Designed as a premier pedal for the tone purist, the V846-HW provides a true bypass circuit to meet the needs of today's guitarist. Any coloration of the sound or loss in audio quality when the Wah Wah function is off has been totally removed.

Vintage-Spec Inductor; Smooth Potentiometer

The inductor is the heart of every VOX Wah Wah pedal. The V846-HW uses a specially-voiced vintage-spec Halo type inductor. The carefully selected magnetic core material and winding ensures a perfect reproduction of the original V846's Wah sound, the sound sought after by guitarists around the world. The potentiometer is a VOX original that features a distinctive response, and is sealed for durability. Thanks to a remarkably smooth curve, the region at the very beginning of the pedal's travel a region difficult for conventional Wah Wah pedals is assured sensitive response with an unprecedentedly fine degree of control.

Premium Components offer Maximum Sound Potential

Carbon composite resistors (made in Japan by KAMAYA ELECTRIC CO., LTD) are used for their extremely low noise and uncolored sound. As in the VOX Hand-Wired Series amps, high-spec polyester film capactitors are used. The high-quality footswitch made by Carling Technologies, was selected for both its reliability and its good feel underfoot. The Switchcraft jacks are well-known and trusted for their sturdy bushings, simple construction, and high reliability. Together, these carefully selected components come together in the amazing V846-HW, the ideal embodiment of the Wah Wah pedal that only VOX can provide.



SPECIFICATIONS

INPUTS
1 x Normal Input Jack

OUTPUTS
1 x Line Out Jack (to amplifier)

POWER
1 x 9v Battery

BATTERY LIFE
Approximately 100 hours (will vary depending on conditions)

DIMENSIONS (W X D X H)
102 x 253 x 80 mm / 4.02 x 9.96 x 3.15 inches
1.3 kg / 2.86 lbs (not including battery)
